4-Bedroom Duplex with Two 3-Bedroom Flats

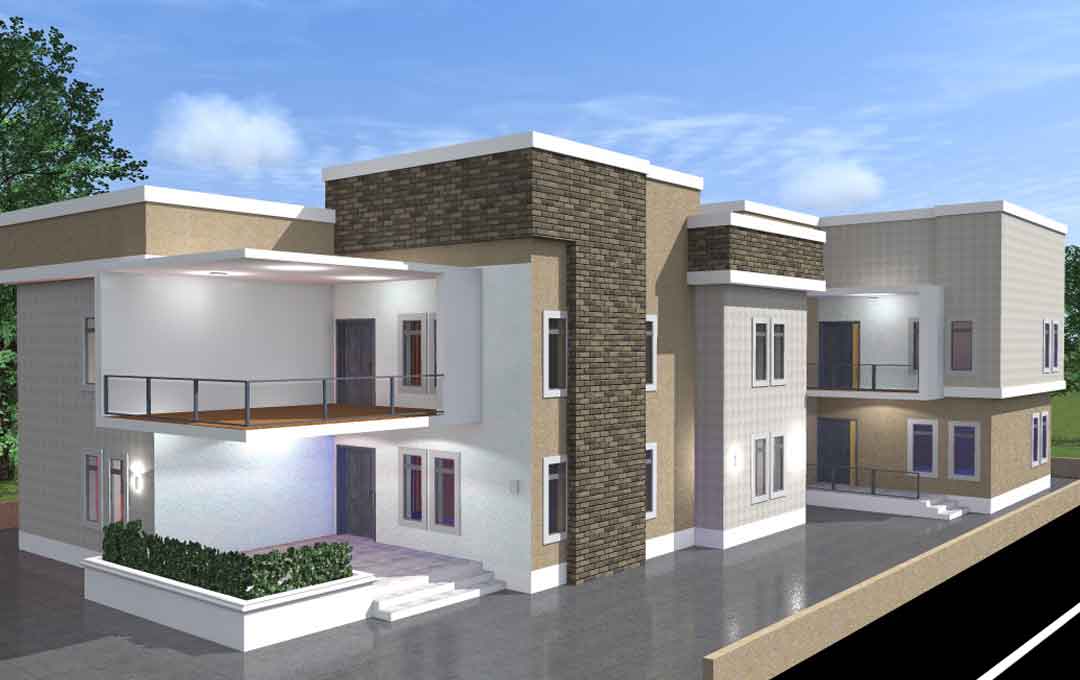

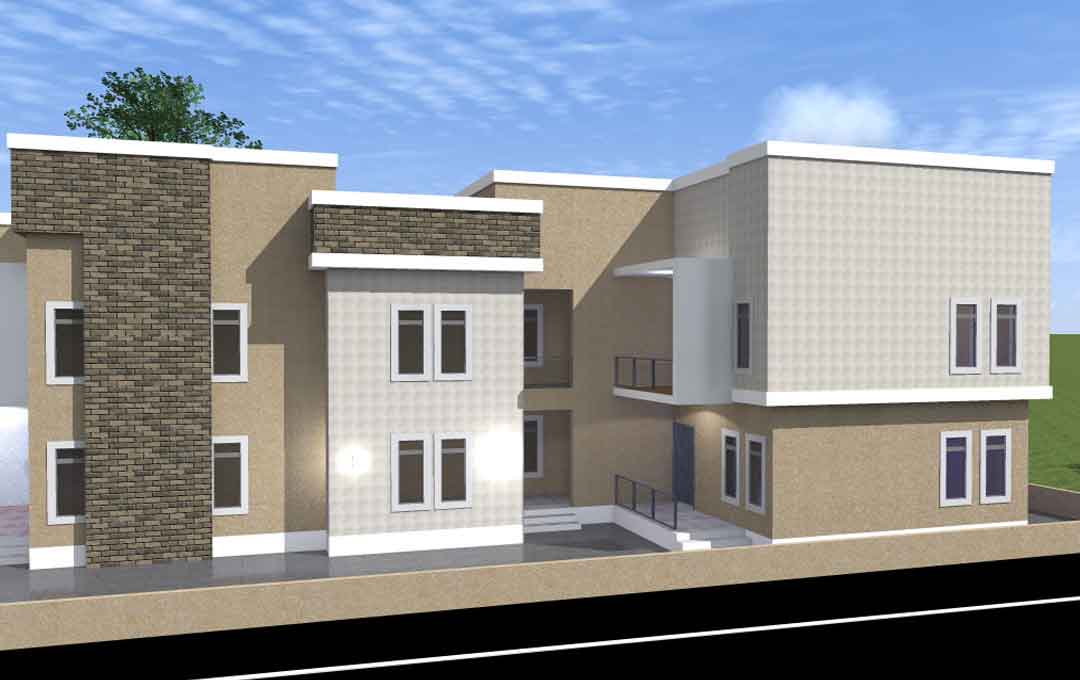

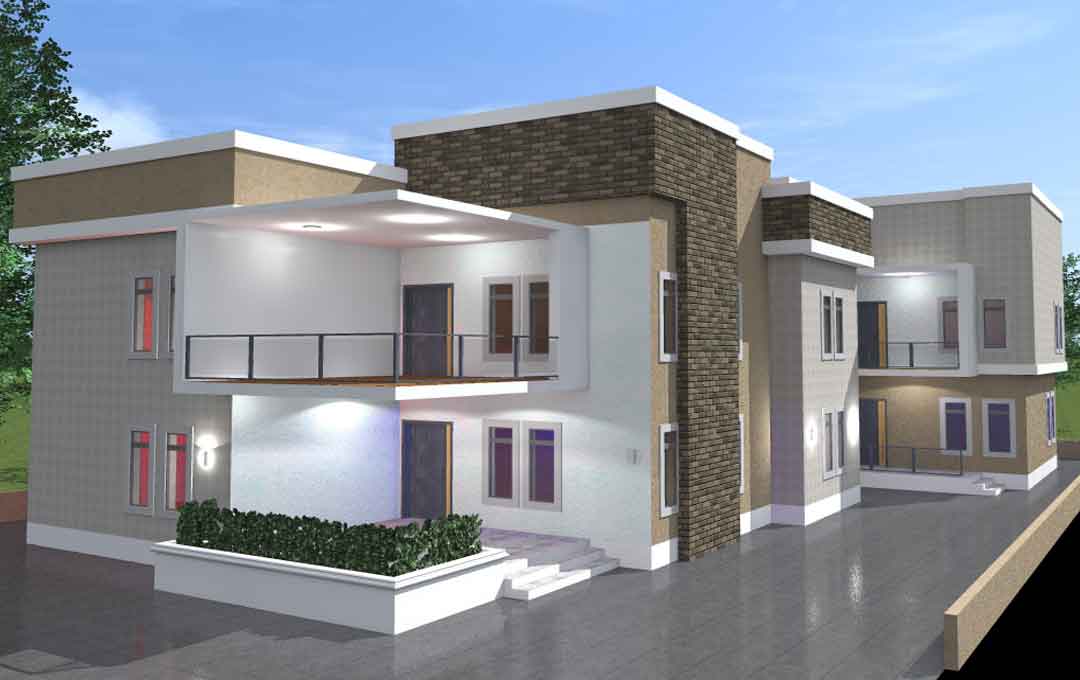

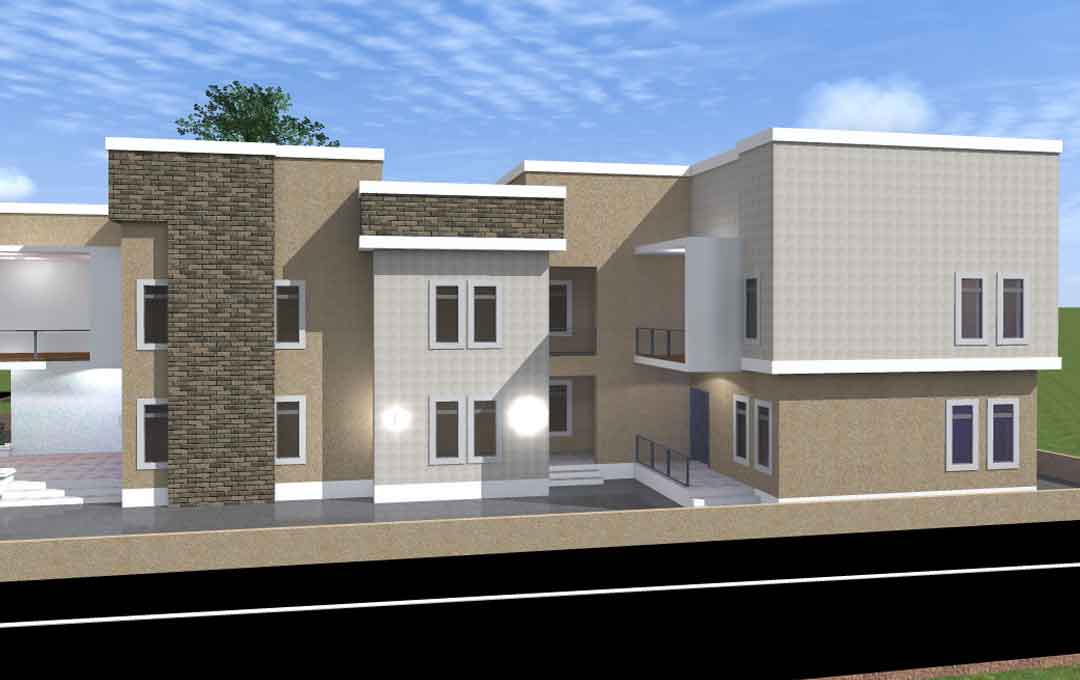

This contemporary house plan is a well-coordinated residential design that combines a 4-bedroom duplex with two self-contained 3-bedroom flats, offering flexibility for family living, rental income, or mixed use. The layout is carefully organized to maintain privacy between the duplex and the flats while ensuring smooth circulation, functional room relationships, and comfortable living across both floors. The design reflects modern residential planning, with clear zoning of social, private, and service areas.
The ground floor is primarily designed for active, day-to-day living. Entry into the duplex begins from a defined entrance porch that leads into a spacious main lounge, which serves as the primary reception and family gathering space. This lounge connects naturally to the dining area, creating an open and welcoming environment suitable for both daily use and entertaining. From the dining area, a lobby provides access to the kitchen, which is positioned close to a veranda to enhance ventilation and service convenience. A bedroom on the ground floor, supported by a nearby toilet, offers flexibility for guests or occupants who may prefer not to use the staircase. The staircase is centrally located, ensuring easy vertical movement to the upper floor without disrupting the privacy of other rooms.
On the first floor of the duplex, the design becomes more private and family-focused. A private lounge at the top of the staircase acts as a quiet sitting area, separating the bedrooms from the more public spaces below. The master bedroom is positioned for maximum privacy and comfort, complete with a dedicated toilet. Additional bedrooms are arranged around the private lounge, each having convenient access to toilet facilities. Some bedrooms open onto sit-out areas, which improve natural lighting and ventilation while providing small outdoor relaxation spaces. This floor is clearly intended for rest and privacy, reinforcing the separation between social and personal zones within the duplex.
The 3-bedroom flats are designed as independent residential units, suitable for tenants or extended family members. Each flat has its own entrance leading into a main lounge that serves as the central living space. The lounge connects smoothly to the dining area, ensuring efficient use of space without unnecessary corridors. From the dining area, access is provided to the kitchen, which is well positioned for functionality and ventilation, often supported by a nearby veranda. The bedroom layout within each flat ensures privacy and comfort, with one bedroom functioning as the master bedroom and the remaining two bedrooms sharing access to well-placed toilet facilities. The internal arrangement allows occupants to move easily between living, dining, and sleeping areas without crossing private spaces.
The overall ground-floor footprint of the building measures approximately 27.589 meters in length and 15.491 meters in width, giving the structure a fairly wide building mass. Due to this width and scale, the house plan is not suitable for a standard 50 × 100 ft plot. However, it is well suited for plots with widths above 50 feet, where proper setbacks, parking, circulation space, and landscaping can be comfortably accommodated.
In conclusion, this contemporary house plan successfully blends a spacious duplex with functional 3-bedroom flats, offering a clear distinction between private family living and independent residential units. Its thoughtful layout, modern flow of spaces, and generous footprint make it ideal for larger plots and homeowners seeking a versatile, income-friendly residential solution.
