3 bedroom and attached self contained house design

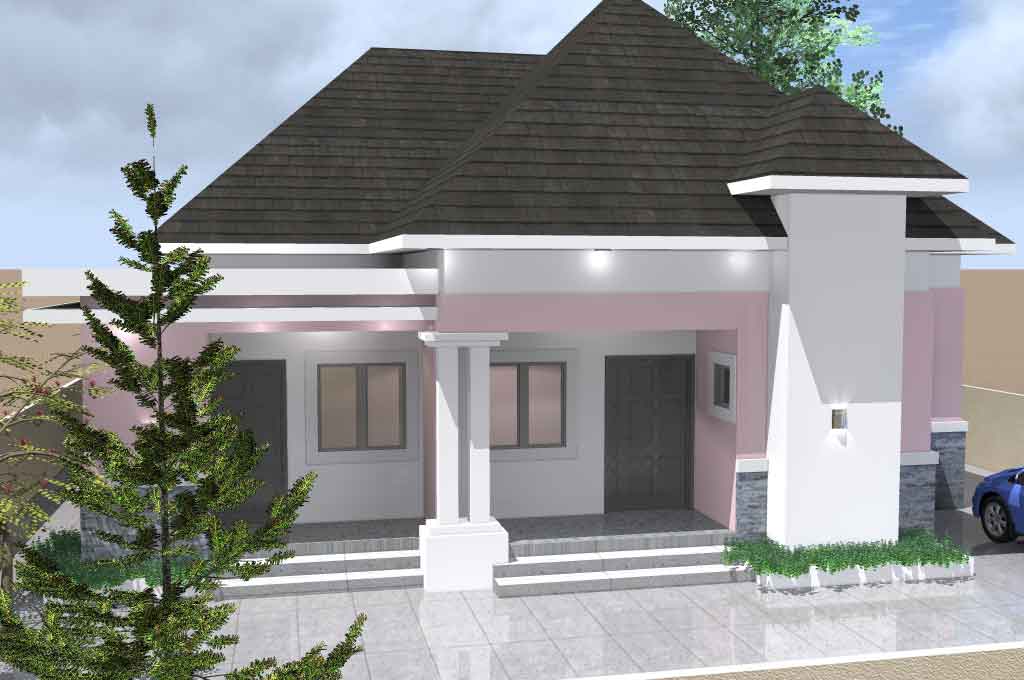

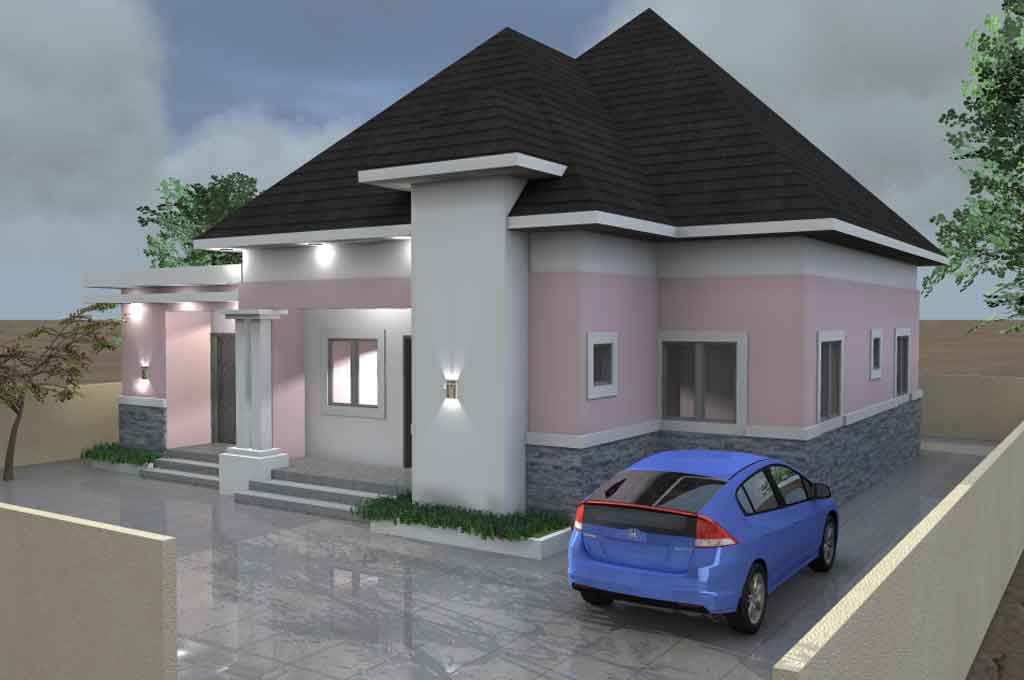

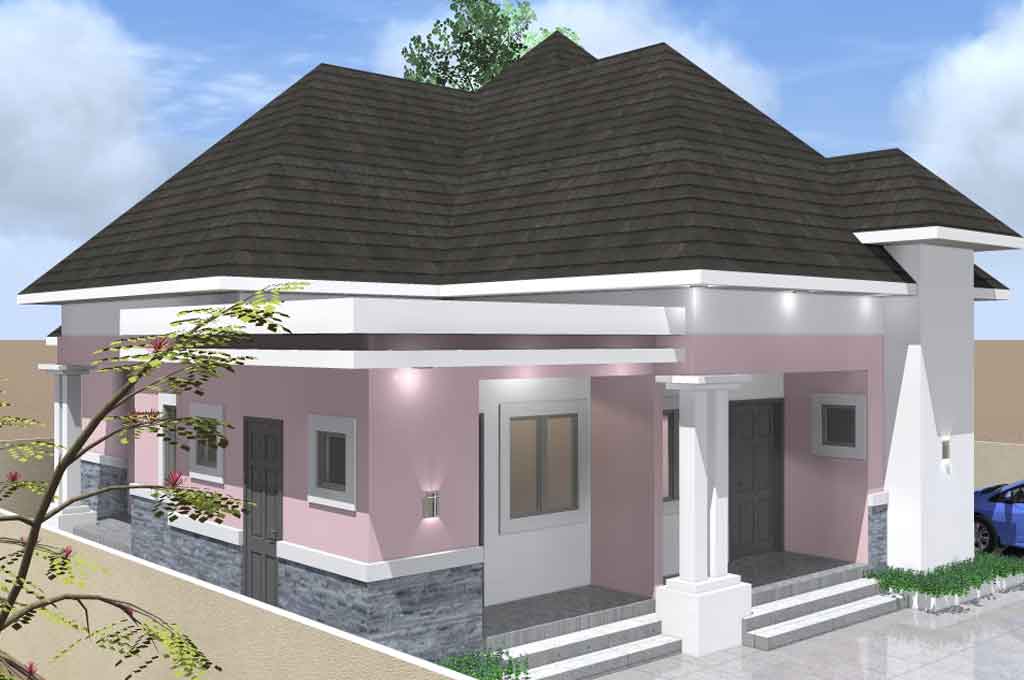

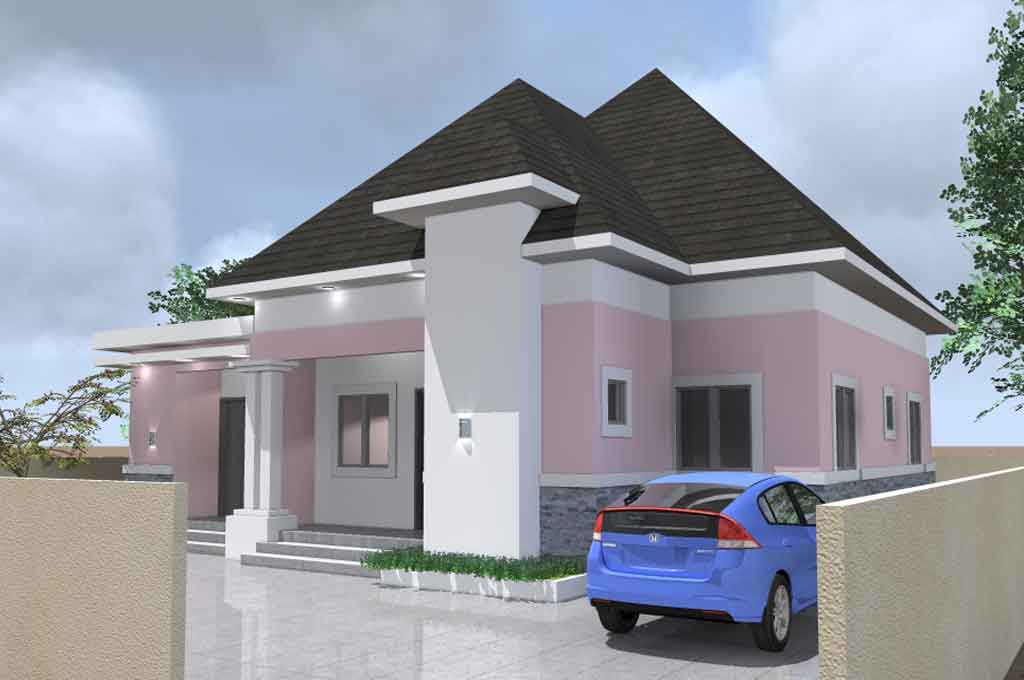

This modern 3-bedroom house design with an attached self-contained unit offers a well-organized and functional layout ideal for families or homeowners seeking both comfort and privacy. The total dimensions of the ground-floor plan measure approximately 12.59 meters in width and 13.66 meters in length, making it perfectly suited for a plot size of 50 by 100 feet (15.24 meters by 30.48 meters). This provides enough room for proper setbacks, parking space, and outdoor areas, ensuring balance between structure and open space.

At the center of the layout is the main lounge, which serves as the focal point of the home, providing access to the bedrooms, dining, and other areas. The master bedroom is located on the right side of the plan and features a spacious layout with a dedicated toilet and bathroom for privacy. The two other bedrooms are positioned on the left side, each with adequate ventilation and easy access to shared facilities. One of these bedrooms connects directly to a common toilet, while the other is accessible through the lobby, ensuring comfort and convenience for family members or guests.

The dining area is strategically placed next to the kitchen, allowing for a seamless flow during meal preparation and serving. The kitchen itself is designed efficiently with adequate workspace and includes a storage room (store) for household items. A veranda (ver.) is connected to the kitchen, offering a secondary access point and improving ventilation.

The plan also features multiple toilets and baths—three in total—to serve both the main house and the self-contained unit. The attached self-contained unit, located at the lower-left corner of the plan, consists of a bedroom, toilet, and veranda. This section can serve as a guest suite, a rental unit, or accommodation for a live-in relative or staff. Its separate entrance ensures privacy from the main living quarters.

Additionally, the design includes several verandas strategically placed around the building to enhance airflow and provide shaded relaxation areas. The overall layout promotes functional circulation, natural lighting, and modern comfort.

This modern 3-bedroom house plan with an attached self-contained unit is not only practical and stylish but also fits comfortably on a 50 by 100 ft plot. It offers a perfect balance of shared and private spaces, making it ideal for homeowners who value flexibility, convenience, and efficient land use.
